Digital High Resolution Controllers (AC Digital Servo)

Peaktronics Digital High Resolution Controllers for Automation

The DHC Series High Resolution Controllers provide the optimum positioner for virtually any AC powered actuator. The DHC-100 Series are directly interchangeable with the AMC or LRC Series.

  • Adaptive Control feature continuously adjusts for load and actuator conditions and positions to ±0.1° with quarter-turn actuators ranging from 2 sec to 120 sec (with or without a brake).
  • Three button control provides easy setup and eliminates the need for instrumentation, calibration procedures, and auto-cal operations.
  • Polarity Detection feature allows direct or reverse acting operation without re-wiring.
  • Electronic Brake feature (DHC-100 Series only) can eliminate need for a mechanical brake and extends brake life if used.
  • Stall Detection feature protects actuator motor from a stall condition.
  • Automatic Duty Cycle Control feature prevents shutdown of a process due to a thermal overload of the actuator motor, and allows actuators rated for 25% duty or more to be safely used.

If you have questions or need technical information about any of the digital high resolution controllers on this page, please call us direct at (248) 542-5640. Our experienced engineers can help find solutions to your automation challenges!

Print Page

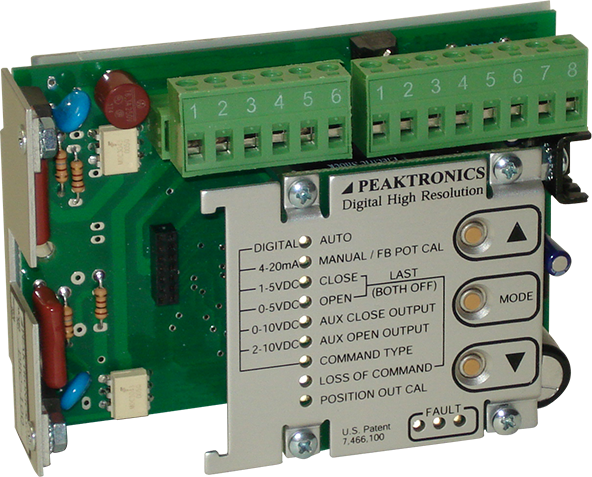

Digital High Resolution Controllers from Peaktronics: USA Made - dhc-100-clipped

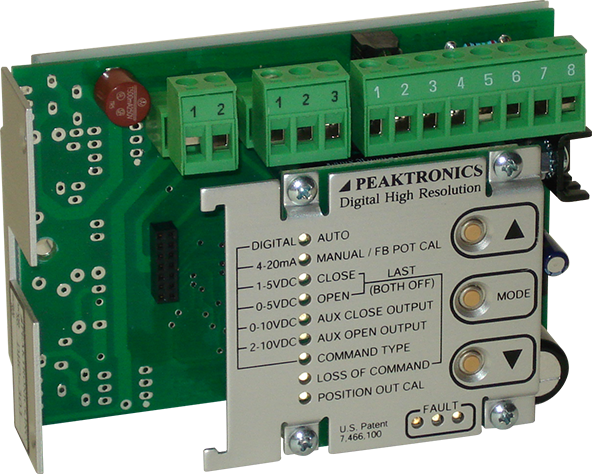

Digital High Resolution Controllers from Peaktronics: USA Made - dhc-300-clipped

Voltage Single Phase 5A Description List
117VAC DHC-100  Single Phase, 5A $317.00
234VAC DHC-100A  Single Phase, 5A $333.75
24VAC DHC-100B  Single Phase, 5A $323.25
234VAC DHC-100D  Digital High Resolution Controllers from Peaktronics: USA Made - DlOEfJ42r8VN-u8j6V1EyFLujC4dADjNVQbRyENI32e72dpnDGC8Zhrceji4w4YvHK_U90IrcvRFKPaSdt3waRKpGtftAanoLIZ0BCJwfwk0ayySou18Bshogymmfa3omEEISyHmIMEJ59Hz5Q Single Phase, 5A $363.50
117VAC DHC-301  3-Phase $317.00

* 3-phase controllers require an SSD-100 and XFR-100.

Option Modules

Digital High Resolution Controllers from Peaktronics: USA Made - otrotx

Digital High Resolution Controllers from Peaktronics: USA Made - ocm

Model Description List
OTX-100 Digital High Resolution Controllers from Peaktronics: USA Made - pdf-icon Current / Voltage Transmitter (adjustable) $60.00
OTX-101 Digital High Resolution Controllers from Peaktronics: USA Made - pdf-icon Isolated 2-wire 4-20mA Transmitter (adjustable) $72.00
OTR-100 Digital High Resolution Controllers from Peaktronics: USA Made - pdf-icon Transmitter (adjustable) and Relay module $128.25
OTR-101 Digital High Resolution Controllers from Peaktronics: USA Made - pdf-icon Isolated Transmitter (adjustable) and Relay Module $154.00

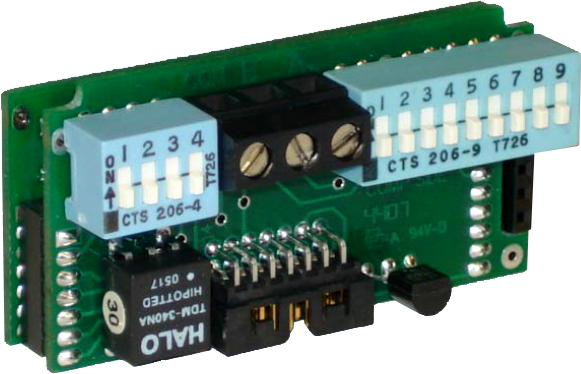

OCM-102 Digital High Resolution Controllers from Peaktronics: USA Made - pdf-icon Modbus Module (isolated RS-485 connection) $390.00

Accessories

Digital High Resolution Controllers from Peaktronics: USA Made - ammssd

Model Description List
AMM-100 Digital High Resolution Controllers from Peaktronics: USA Made - pdf-icon Auto/Manual Station Interface Module $40.75
SIG-100 Digital High Resolution Controllers from Peaktronics: USA Made - pdf-icon 1-5 / 2-10 VDC Signal Adaptor, 21K ohms $12.50
SSD-100 Digital High Resolution Controllers from Peaktronics: USA Made - pdf-icon 3-Phase Solid State Driver (for DHC-300 series only) call
XFR-100 Digital High Resolution Controllers from Peaktronics: USA Made - pdf-icon Step Down Controls Transformer (440/380/230VAC to 115VAC) call
